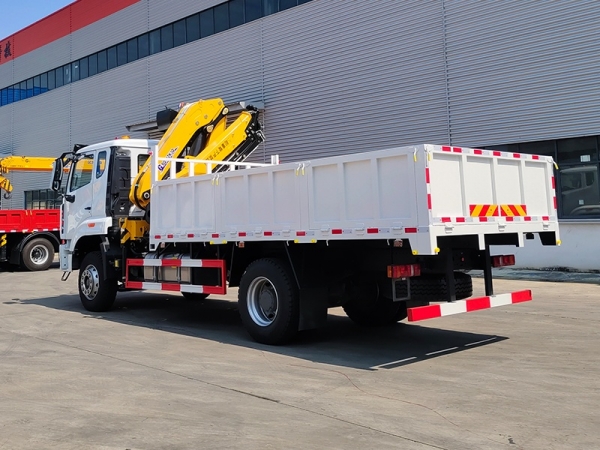

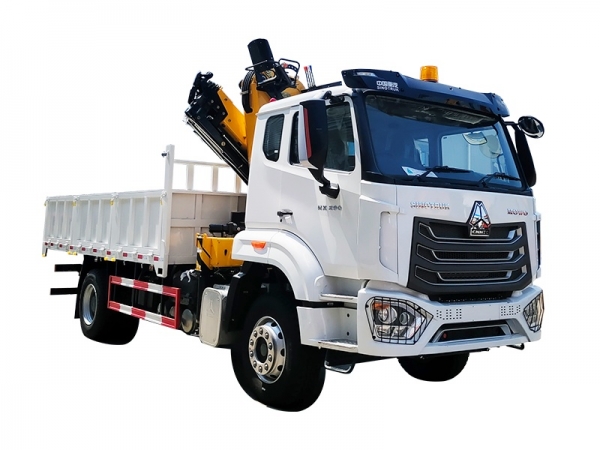

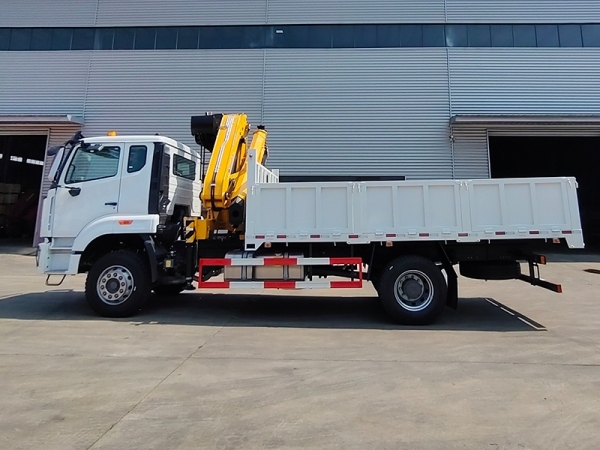

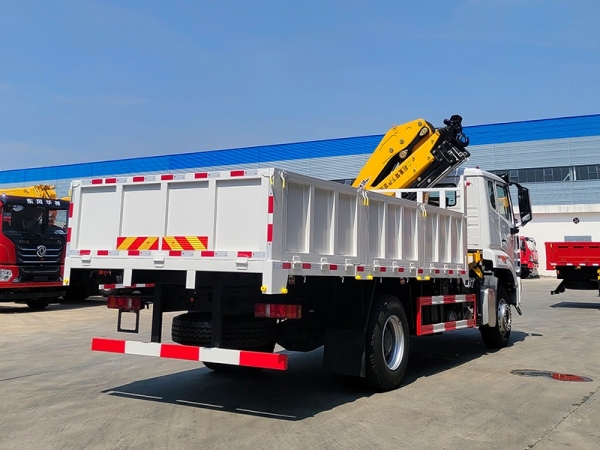

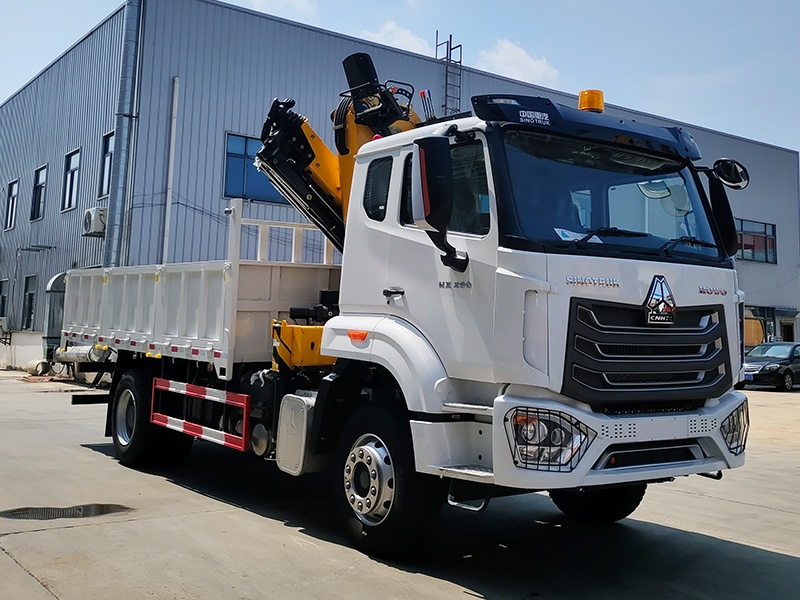

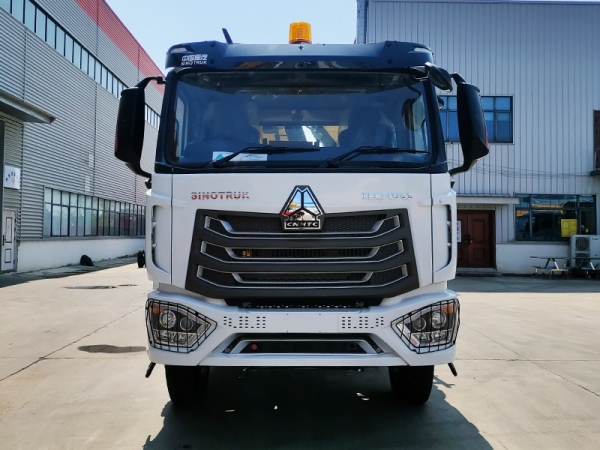

NX Series Right-Hand Drive 4×2 Drive Single Axle Knuckle Boom Truck-Mounted Crane

NX Series Right-Hand Drive 4×2 Drive Single Axle Knuckle Boom Truck-Mounted Crane

A truck-mounted crane is a special-purpose vehicle that integrates cargo transportation and on-site hoisting, equipped with a hydraulic crane installed on the truck chassis.

Straight arm (telescopic arm)	Large operating radius, cost-effective and commonly used
Knuckle boom (articulated arm)	Flexible, suitable for narrow spaces, higher cost
Number of boom sections	3 sections, 4 sections, 5 sections (more sections mean longer boom and larger radius)
Slewing / Rotation	360° full rotation
Tonnage (rated lifting capacity)	3.2t, 5t, 6.3t, 8t, 10t, 12t, 14t, 16t, 20t
8 tons	Boom length 12–14m, operating radius 10–12m
14 tons	Boom length 18–20m, operating radius 16–19m
16–20 tons	Boom length 20–22m, operating radius 18–20m
Material	HG60, HG70, HG785 high-strength steel plates
Single gear pump	8 tons and below
Double gear pump	Above 10 tons, high flow rate, fast speed, more stable
Cargo box structure	5mm thick bottom plate, 3mm thick side plates
Outriggers	Front outriggers (standard) / Rear outriggers (optional)
