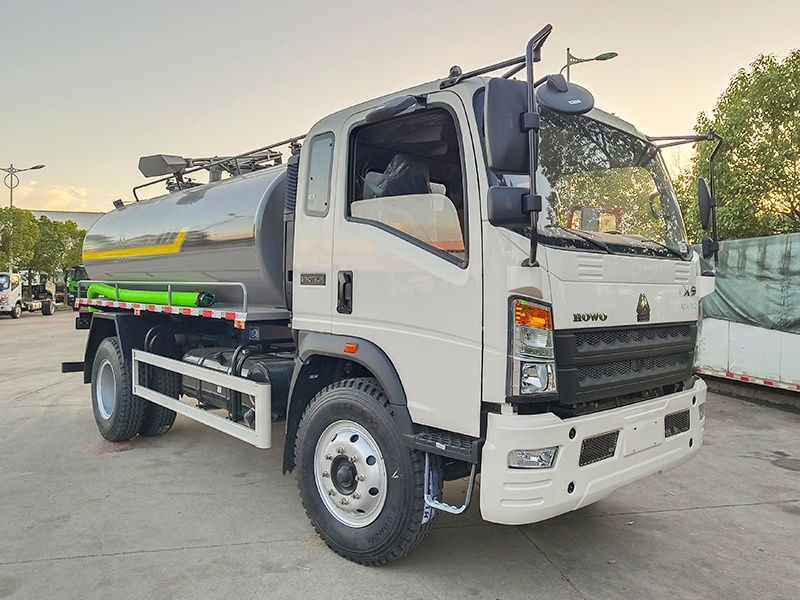

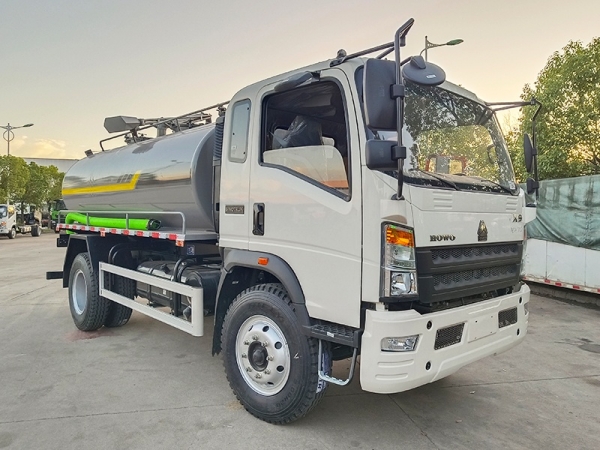

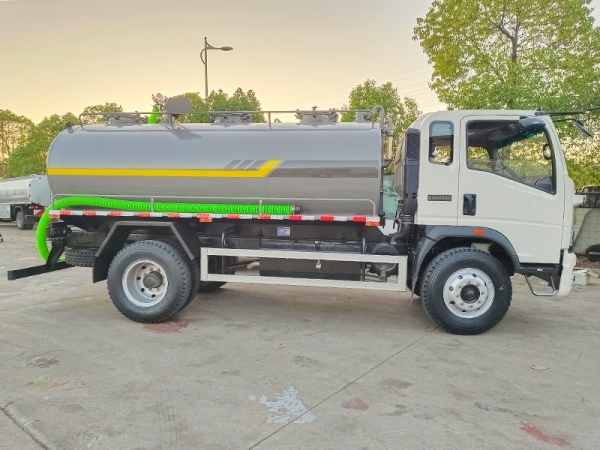

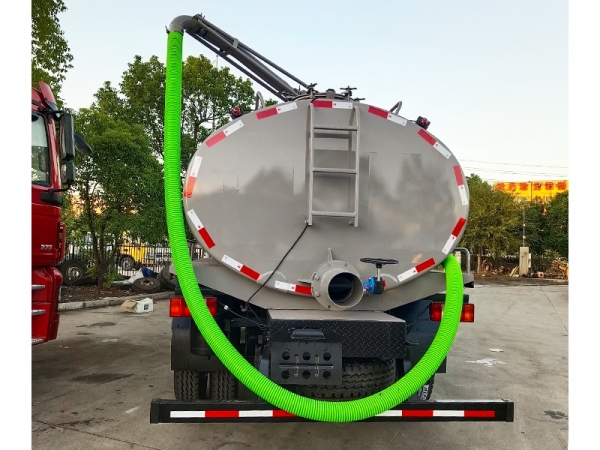

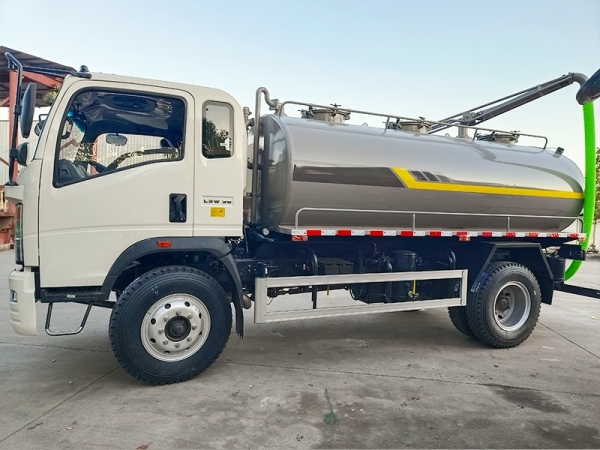

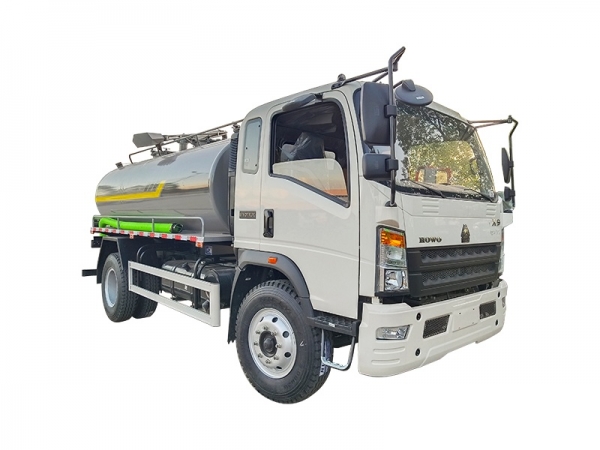

8 cubic meter fecal suction truck

It is a special vehicle mainly used for suctioning and transporting liquid waste such as feces and sewage. The tank is oval-shaped, hermetically sealed and fixed, with a non-openable rear head.

Equipped with a feces viewing window, anti-overflow valve, and oil-gas/water-gas separator.

Its working principle is:

The vacuum pump creates negative pressure, and feces, sewage and thin slurry are pushed into the tank by atmospheric pressure; discharge is achieved by gravity flow or pressurization.

Tank Material	Standard option: Q235 carbon steel; for highly corrosive or high-frequency operations: 304 stainless steel
Tank Thickness	2–5 m³: 4–5 mm thickness; 6–10 m³: 5–6 mm thickness; above 12 m³: 6–8 mm thickness
Structural Design	Oval tank with built-in wave-proof baffles, tilted 60 mm higher at the front and lower at the rear
Volume / Capacity	Available capacities: 2 m³, 5 m³, 10 m³, 12 m³
Discharge Method	Dual discharge modes: gravity flow + pressure discharge
Control System	Hydraulic lifting and cylinder-controlled rear cover
