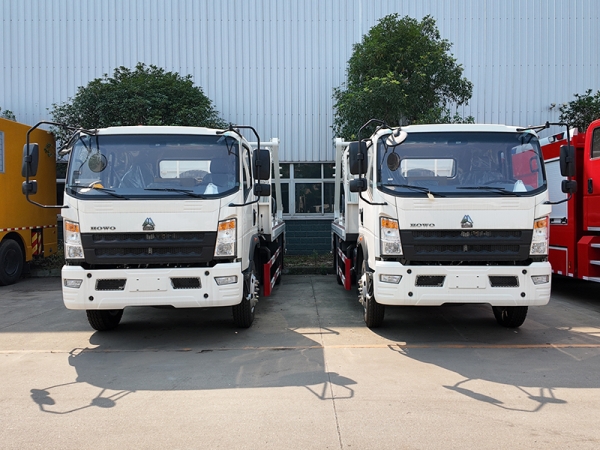

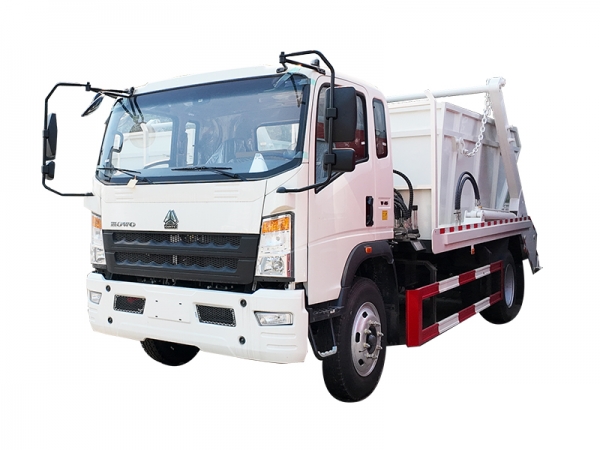

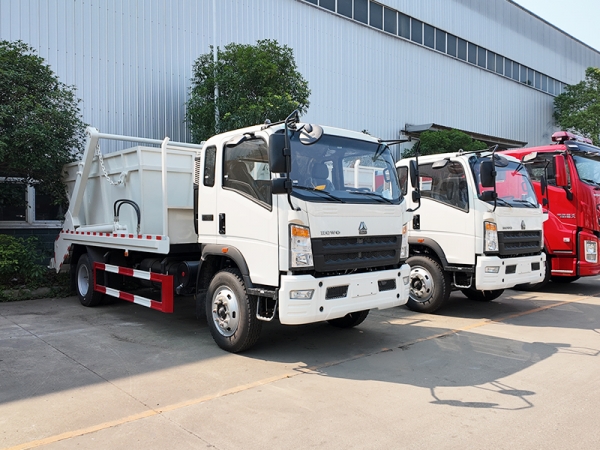

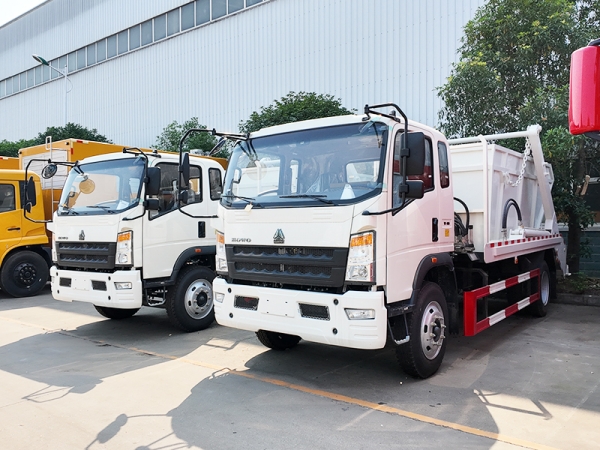

Sinotruk Light-Duty Arm Lift Garbage Truck

Cab Configuration

Cab Style: Classic Zhui Meng model

Semi-row cab with 2080 width; Wheelbase: 3800mm

Powertrain & Chassis

Engine: YC4E140-33

Preheating: Flame preheating

ABS: Without ABS

Rearview Mirror: New national standard framed four-piece rearview mirrors (LH & RH)

Fuel Tank: 220L steel fuel tank

Rear Axle: 8.0t drum brake, final drive ratio 5.286

Transmission: WLY6TS55

Power Steering: Reinforced power steering

Front Axle: 3.2t drum brake

Suspension: 9/12+9B leaf spring

Tyre: 8.25R20 16PR all-steel radial tyre

Swing Arm Mechanism	Q355 alloy steel reinforced arm, driven by double oil cylinders; capable of hoisting and unloading standard garbage bins (one truck with multiple bins); double hydraulic outriggers at the rear to prevent tilting; equipped with limit device + safety lock + relief valve
Bucket Volume	6/7/8m³ 8/9/10m³
Garbage Bin Volume	Q235B carbon steel plate (side 3mm, bottom 4mm / side 4mm, bottom 6mm; thickened version available)
Standard Upper Equipment	Garbage bin hoisting + self-dumping, double outriggers, double control stations, hydraulic lock, overload protection
Optional Add-ons	Sealing cover for bin body, PLC automatic control, wireless remote control, hydraulic lock for rear door, spray dust suppression system, GPS monitoring, reverse camera / radar
