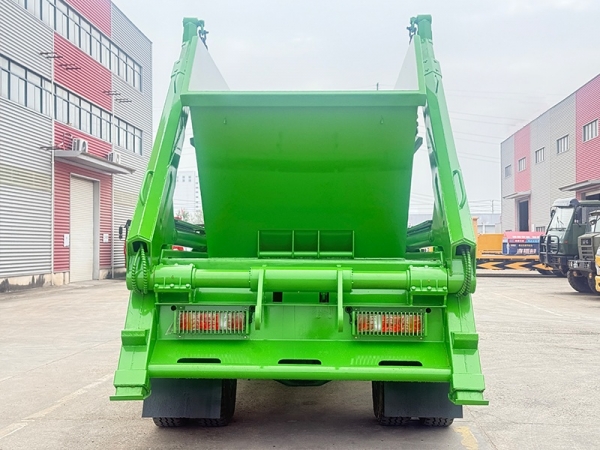

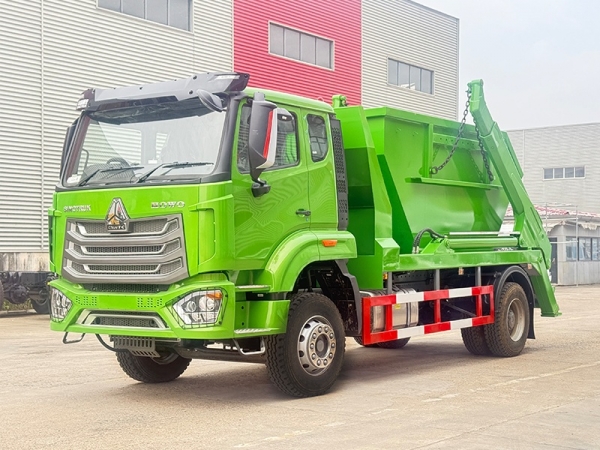

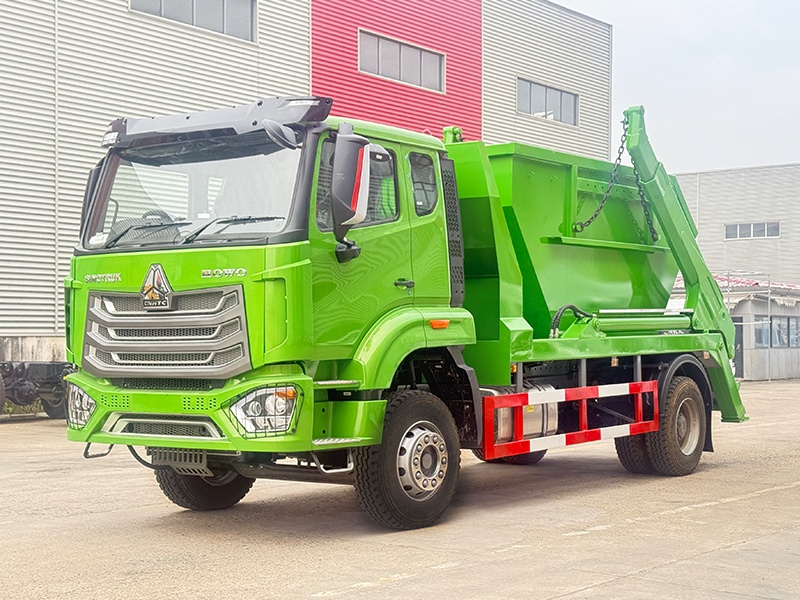

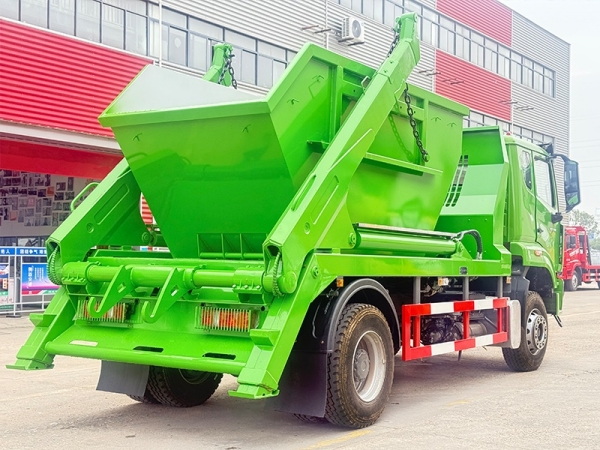

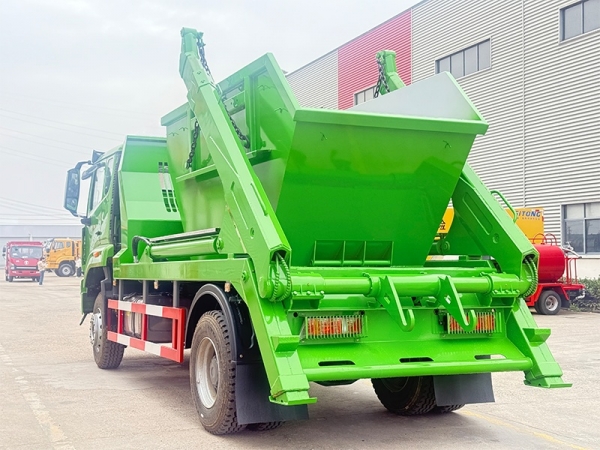

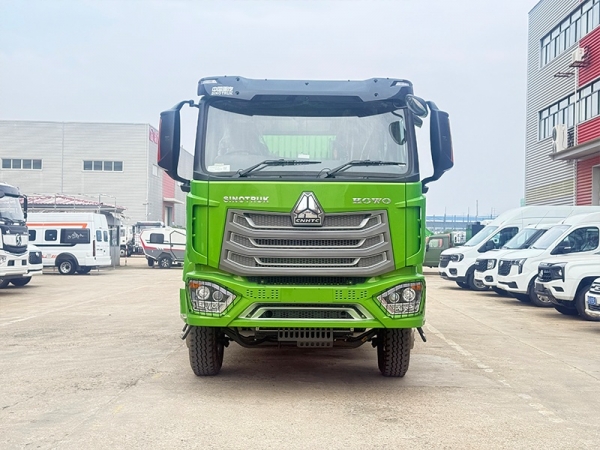

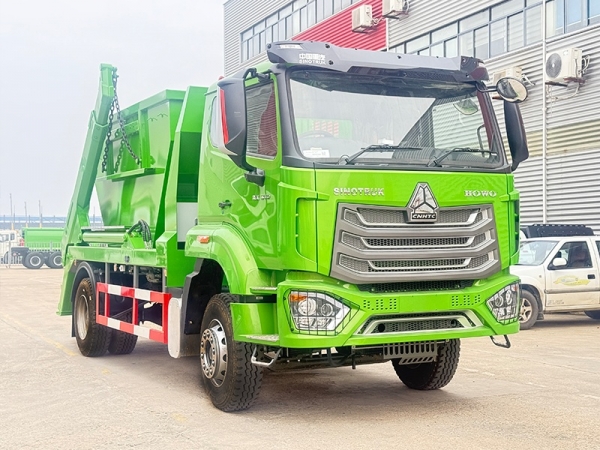

NX Series 4×2 Drive Swing Arm Garbage Truck
| Body Dimensions | 9.23×2.6×3.98 meters |
| Front Track | 1956 mm |
| Maximum Speed | 89 km/h |
| Transmission Model | Sinotruk 8-speed gearbox |
| Tires | 275/80R22.5 18PR |
| Engine | 290 HP |
| Wheelbase | 5100 mm |
| Chassis Options | Premium cab, aluminum-cased gearbox, four-way cameras, 600L fuel tank, four-airbag cab suspension |
| Swing Arm Mechanism | Q355 alloy steel reinforced arm, driven by double oil cylinders; capable of hoisting and unloading standard garbage bins (one truck with multiple bins); double hydraulic outriggers at the rear to prevent tilting; equipped with limit device + safety lock + relief valve |
| Bucket Volume | 6/7/8m³ 8/9/10m³ |
| Garbage Bin Volume | Q235B carbon steel plate (side 3mm, bottom 4mm / side 4mm, bottom 6mm; thickened version available) |
| Standard Upper Equipment | Garbage bin hoisting + self-dumping, double outriggers, double control stations, hydraulic lock, overload protection |
| Optional Add-ons | Sealing cover for bin body, PLC automatic control, wireless remote control, hydraulic lock for rear door, spray dust suppression system, GPS monitoring, reverse camera / radar |
