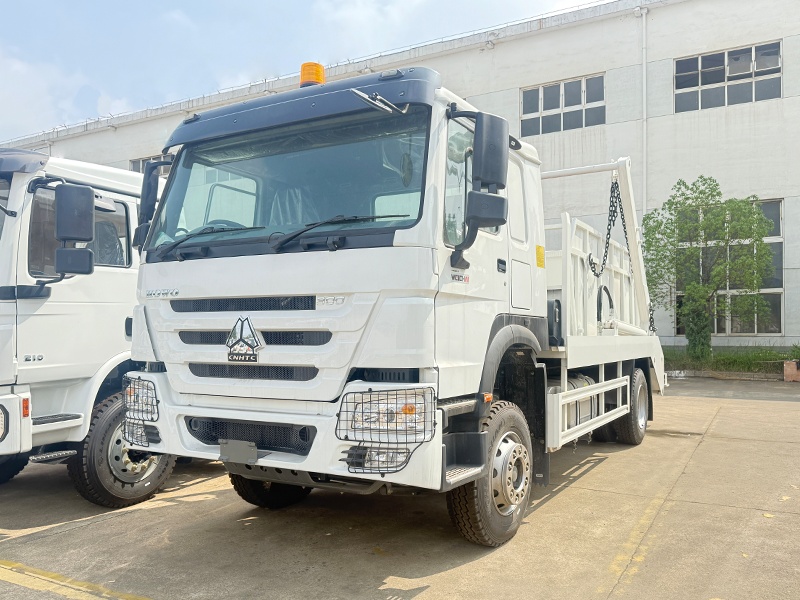

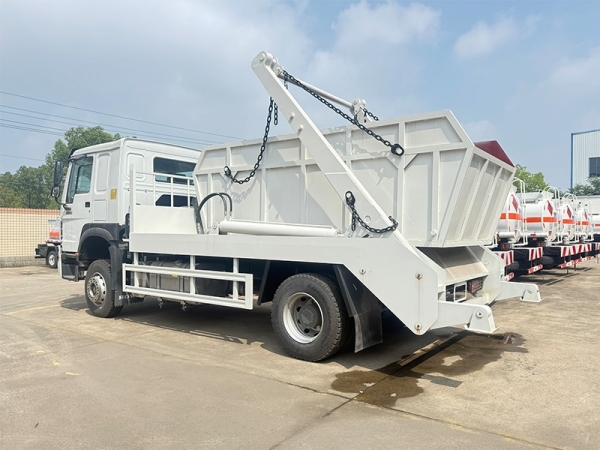

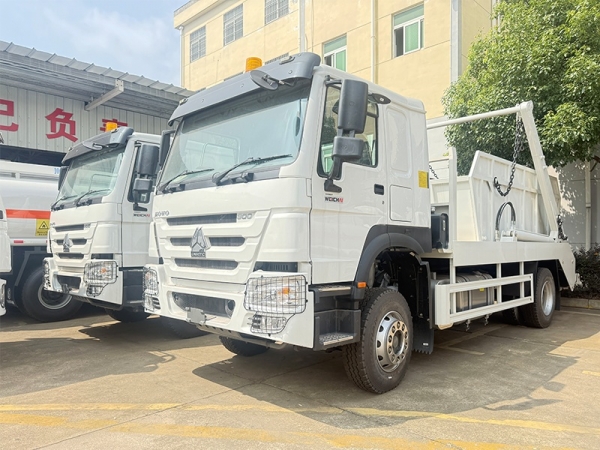

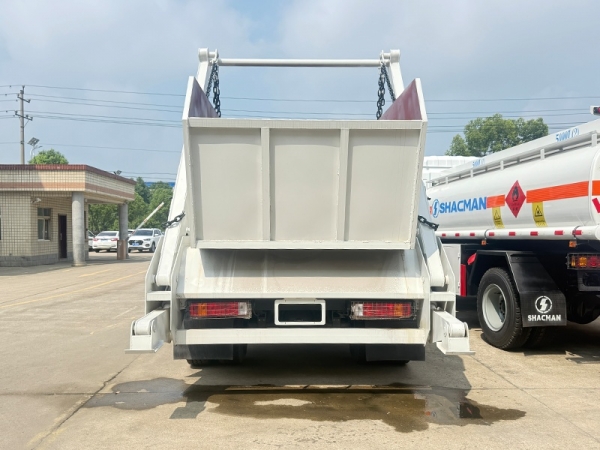

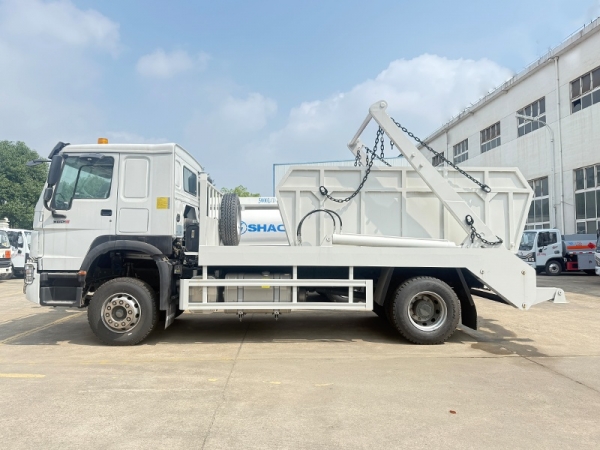

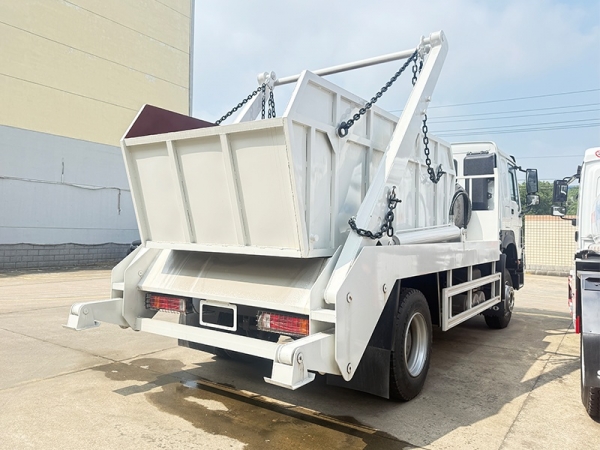

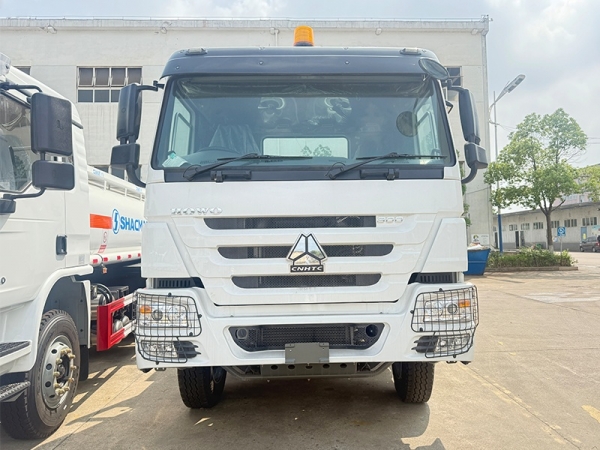

Right-hand drive, 4600mm wheelbase, 300 horsepower swing arm garbage truck

Right-hand drive, 4600mm wheelbase, 300 horsepower swing arm garbage truck

Body Dimensions	8.23×2.6×3.98 meters
Maximum Speed	89 km/h
Tires	80R22.5 18PR
Engine	300 HP
Wheelbase	4600 mm
Chassis Options	Premium cab, aluminum-cased gearbox, four-way cameras, 600L fuel tank, four-airbag cab suspension
Swing Arm Mechanism	Q355 alloy steel reinforced arm, driven by double oil cylinders; capable of hoisting and unloading standard garbage bins (one truck with multiple bins); double hydraulic outriggers at the rear to prevent tilting; equipped with limit device + safety lock + relief valve
Bucket Volume	6/7/8m³ 8/9/10m³
Garbage Bin Volume	Q235B carbon steel plate (side 3mm, bottom 4mm / side 4mm, bottom 6mm; thickened version available)
Standard Upper Equipment	Garbage bin hoisting + self-dumping, double outriggers, double control stations, hydraulic lock, overload protection
Optional Add-ons	Sealing cover for bin body, PLC automatic control, wireless remote control, hydraulic lock for rear door, spray dust suppression system, GPS monitoring, reverse camera / radar
